XRange FPGA

The AirNav XRange FPGA is our enterprise-grade ADS-B receiver, designed to deliver professional-grade tracking in a streamlined, standalone package. While it retains the simple setup of the XRange 2, this commercial-focused device is specifically engineered to solve the historical challenges of managing diverse signal strengths. Traditionally, handling multiple signals required a compromise between latency and flexibility, often necessitating expensive, fragmented hardware configurations for different tasks. By integrating FPGA (Field-Programmable Gate Array) technology, we consolidate massive processing power into a single unit. Unlike traditional systems, the FPGA excels at high speed, parallel signal processing and optimized filtering. This architecture eliminates the need for multiple devices, significantly reducing latency while enhancing both ground and aerial ADS-B reception. The result is a versatile, high-performance ADS-B receiver that provides the precision required for professional airspace monitoring.

Technical Specifications

Specification

Details

Voltage rating

5V DC (Micro-USB connector)

Current rating (max)

2A

Ethernet

100Mbps (RJ45 connector)

ADS-B Receiver

SMA female connector on the receiver; omnidirectional antenna optimized for 1090MHz, with SMA male connector

Operating temperature

-10 – 45° C (14 to 113 F)

Power supply

100-240V AC 50-60Hz input rate, 5.1V DC 2.5A output rate

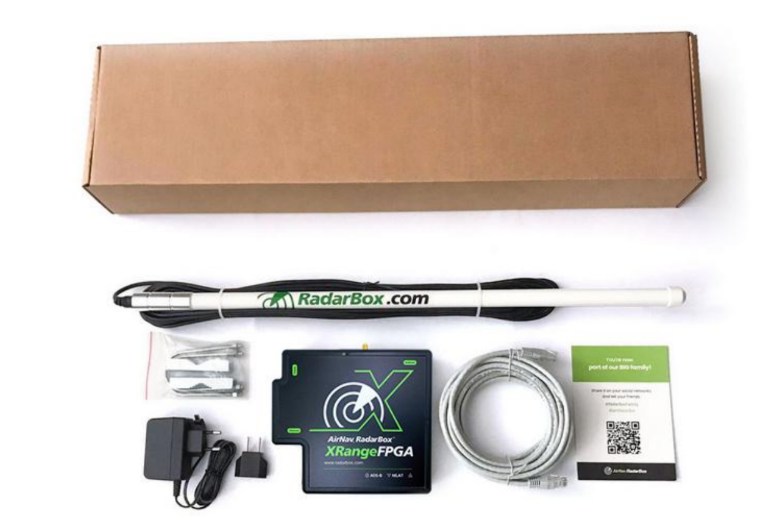

Package Contents:

  1. RadarBox XRange FPGA Receiver
  2. External 1090 MHz optimized antenna
  3. Power Supply
  4. Ethernet Cable
