ADS-B Equipment
978 MHz Antenna
Upgrade your Universal Access Transceiver setup with the AirNav UAT 978 MHz Antenna, a high-gain solution for dedicated monitoring on the 978 MHz Band.
Designed for maximum signal sensitivity, this antenna provides a guaranteed 50–100 nm range increase for all UAT-equipped aircraft. Its heavy-duty fiberglass and aluminum alloy construction ensures reliable performance in extreme weather conditions. Each unit is shipped as a complete kit, featuring a 30-foot cable (10 meters) and SMA connector, ensuring effortless integration with any compatible UAT receiver. Secure professional-grade reception today with this specialized antenna.
Technical Specifications
Eletrical Specifications
Specification | Details |
Frequency Range | 978 MHz |
VSWR | ≤ 1.5 |
Gain | 7dBi |
Impedance | 50Ω±5Ω |
Polarization | Vertical |
Beamwidth | NA |
H-PLANE | 360° |
E-PLANE | 23° |
Max. Power | 10 Watt |
Isolation | NA |
Mechanical Specifications
Specification | Details |
Connector | SMA |
Cable | NA |
Operation Temp. | -30℃ ~ +60℃ |
Material-Radome | Fiberglass; Base: Aluminum Alloy; Mount: Stainless |
Dimension (L*W*H) | Ø30*605mm ± 5mm |
Weight | 370g ± 10g |
RoHS compliant | Yes |
Application | Suitable for indoor and outdoor use |

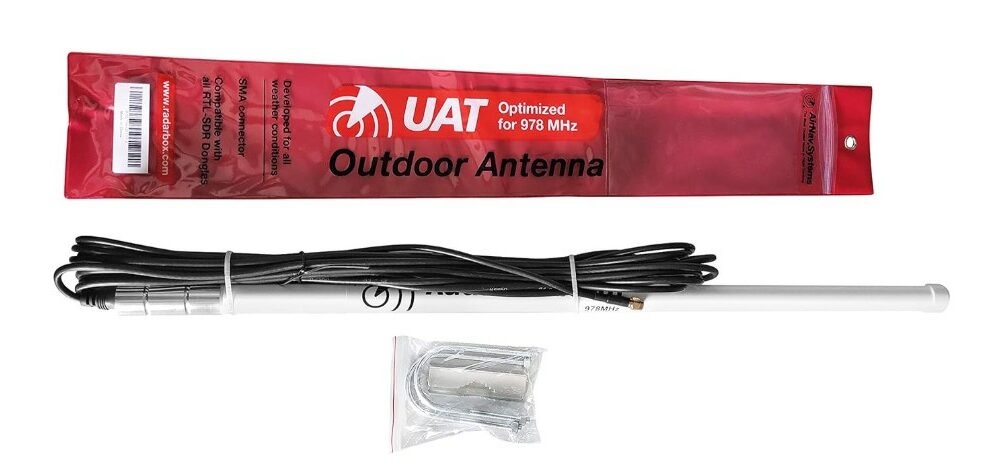

Package Contents:
- 978 MHz Antenna
- Mounting Bracket & Screws
- 30 feet Co-axial Cable (SMA Connector)
