1090 MHz Antenna
This high-gain, omni-directional, outdoor antenna is optimized specifically for 1090 MHz ADS-B signal reception. Built with a weather-resistant fiberglass and aluminum alloy housing, it delivers reliable performance even in challenging weather conditions.
The antenna is proven to extend receiver range by 50–100 nautical miles, and drastically reduce signal drops. It arrives ready for installation with a 30-foot low-loss cable and a universal SMA connector. This antenna is fully compatible with all AirNav 1090 MHz ADS-B receivers, offering fantastic interoperability across your ADS-B setups.
Technical Specifications
Eletrical Specifications
| Specification | Details |
| Frequency Range | 1090MHz |
| VSWR | ≤ 1.5 |
| Gain | 7dBi |
| Impedance | 50Ω±5Ω |
| Polarization | Vertical |
| Beamwidth | NA |
| H-PLANE | 360° |
| E-PLANE | 23° |
| Max. Power | 10 Watt |
| Isolation | NA |
Mechanical Specifications
Specification | Details |
Connector | SMA |
Cable | NA |
Operation Temp. | -30℃ ~ +60℃ |
Material-Radome | Fiberglass; Base: Aluminum Alloy; Mount: Stainless |
Dimension (L*W*H) | Ø30*605mm ± 5mm |
Weight | 370g ± 10g |
RoHS compliant | Yes |
Application | Suitable for indoor and outdoor use |

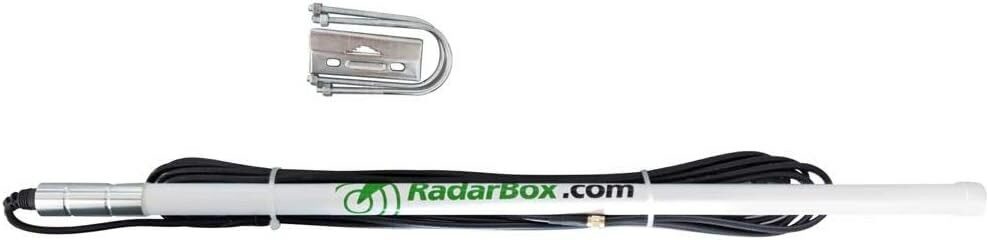

Package Contents:
- 1090 MHz Antenna
- Mounting Bracket & Screws
- 30 feet Co-axial Cable (SMA Connector)
